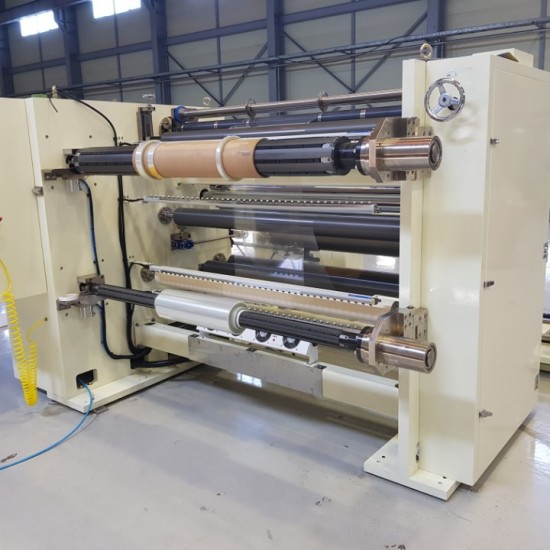

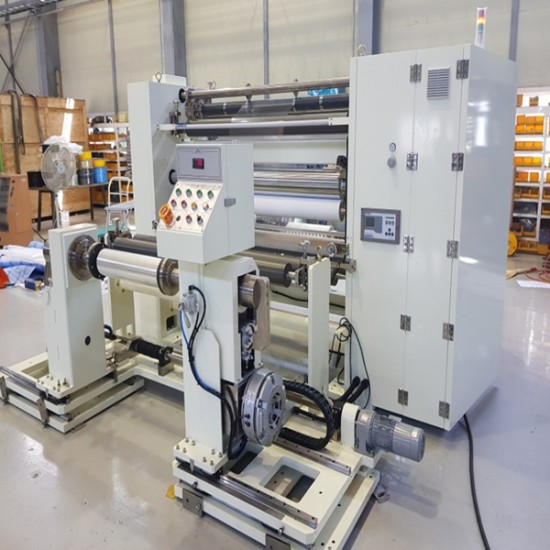

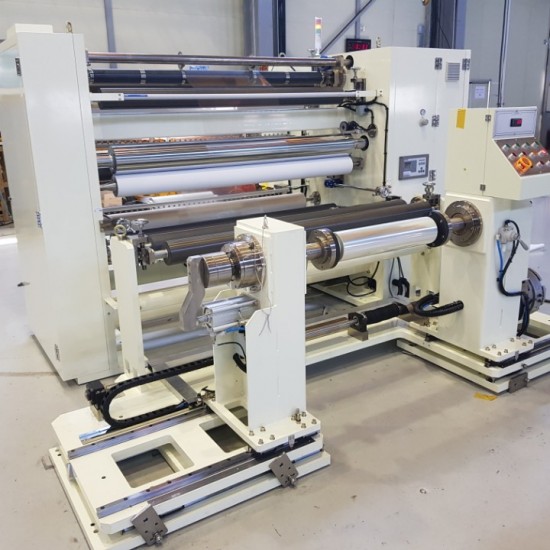

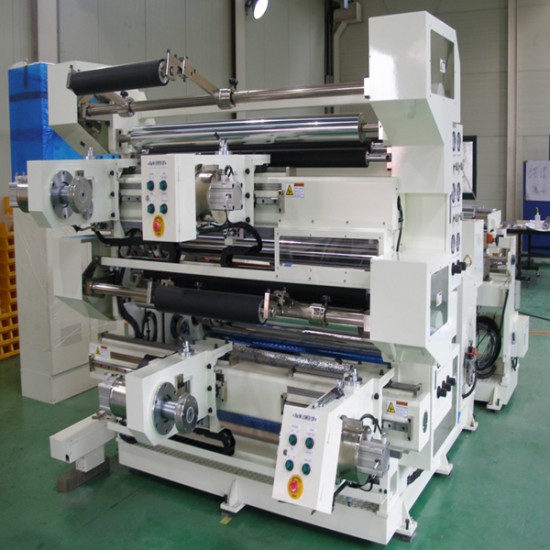

R2R Slitter
본문
General Specification
| Web Material | OCA Film(PET+ PSA + PET) |
|---|---|
| Web Thickness | PET (50㎛~75㎛) + PSA (100㎛~350㎛) + PET (50㎛~75㎛) = (200㎛ ~ 500㎛) |
| Web Width | Max 1,200 mm |
| Roll Width | Max 1,400mm |
| Slitting Width | 500mm, 1,000mm |
| Design Speed | Max 30m/min(Nomal 20m/min) |
| Slitting System | Shear Knife System |
| Unwind Diameter | Max 800mm |
| Rewind Diameter | Max 400mm |
| Winding System | Gap & Touch Type |
